Railway Aluminum plate: Aluminum plate alloys have been widely applied in light rail, metro and high-speed rail. The features of light weight, corrosion resistance and good performance can be obtained by largely using aluminum in railway transportations. Aluminum plate are mainly used as outer body sheet, inner decorative sheet, roof and floor plank. Furthermore, some aluminum tubes with small size are used for ventilation and transmission devices within the trains as well.
Railway aluminum plate has light weight and corrosion resistance
The Aluminum plate manufactured by Signi aluminum possess various advantages, such as high strength, superior extrusion performance, good weldability and good corrosion resistance etc. These plate are especially suitable for body structure, solebar and frame.

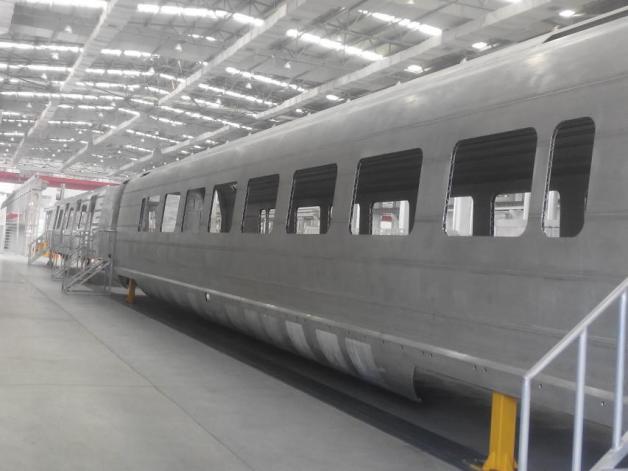

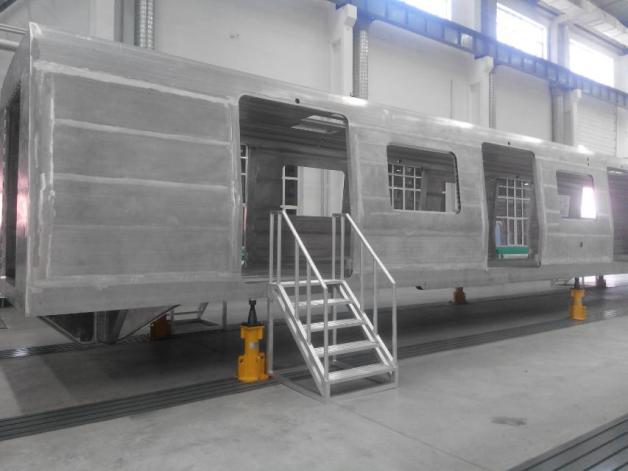

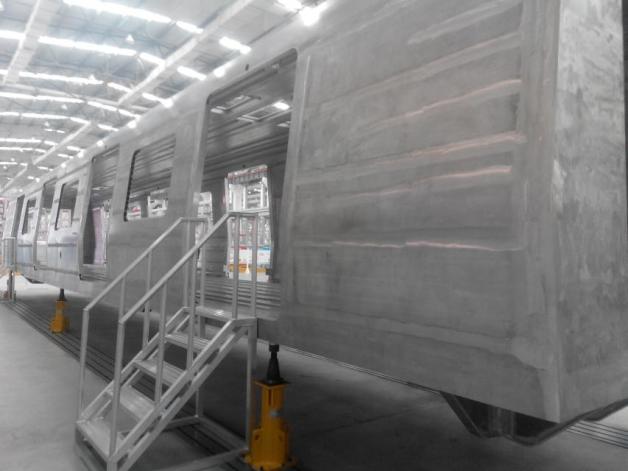

Aluminum plate shall be applied to the body structure
Signi aluminum are capable of providing various Aluminum plate products for railway transportation, such as floor plank, solebar, side wall, cantrail, roof and bolster etc.
Classic alloy:
-
5052, 5754, 5083, 5A06
-
6101, 6005, 6005A, 6082, 6063, 6N01, 6061, 6106
-
7003, 7N01, 7005, 7020
Corrosion resistance of aluminum plate
Product characters: high strength, stress corrosion resistance and good weldability.
|
Specifications |
|
Alloys (AA) |
Temper |
Thickness range (mm) |
Length range (mm) |
Width range (mm) |
5052, 5754, 5083, 5A06
6101, 6005, 6005A, 6082, 6063, 6N01, 6061, 6106
7003, 7N01, 7005, 7020
|
F and O
H111, H112, T4, T6 (For 6061, 6063), T651(Stretched plate) |
6 — 300 |
1000 — 10000 |
500 — 2700 |
|
Stretched aluminum plate |
|
Thickness limit |
6 — 70 mm |
|
Length limit |
2000 — 10000 mm |
Railway aluminum plate
|
Chemical composition |
|
Alloy (%) |
5052 |
5083 |
6063 |
5754 |
6061 |
7020 |
|
Si |
0.25 |
0.40 |
0.20~0.6 |
0.40 |
0.40— 0.80 |
0.35 |
|
Fe |
0.40 |
0.40 |
0.35 |
0.40 |
0.70 |
0.40 |
|
Cu |
0.10 |
0.10 |
0.10 |
0.10 |
0.15— 0.40 |
0.20 |
|
Mn |
0.10 |
0.40— 1.0 |
0.10 |
0.50 |
0.15 |
0.05~0.50 |
|
Mg |
2.2— 2.8 |
4.0— 4.9 |
0.45~0.9 |
2.6— 3.6 |
0.8— 1.2 |
1.0~1.4 |
|
Cr |
0.15— 0.35 |
0.05— 0.25 |
0.10 |
0.30 |
0.04— 0.35 |
0.10~0.35 |
|
Zr |
— |
— |
— |
— |
— |
0.08~0.20 |
|
Zn |
0.10 |
0.25 |
0.10 |
0.20 |
0.25 |
4.0~5.0 |
|
Ti |
— |
0.15 |
0.10 |
0.15 |
0.15 |
0.08~0.25 |
|
Each (Others) |
0.05 |
0.05 |
0.05 |
0.05 |
0.05 |
0.05 |
|
Total (Others) |
0.15 |
0.10 |
0.15 |
0.15 |
0.15 |
0.15 |
|
Al |
Remaining |
Remaining |
Remaining |
Remaining |
Remaining |
Remaining |
|
Single number indicates maximum content. |
|
Packing |
|
Aluminum plateAluminum Plates are placed in wooden boxes on wooden skids with runners along the length of the sheet. They are wrapped in HDPE with hardboard on top and bottom of the stack. Hoop iron strapping runs along the length of the sheets. Silica gel packets are put in the boxes for moisture protection.(Aluminum plate) |
